Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

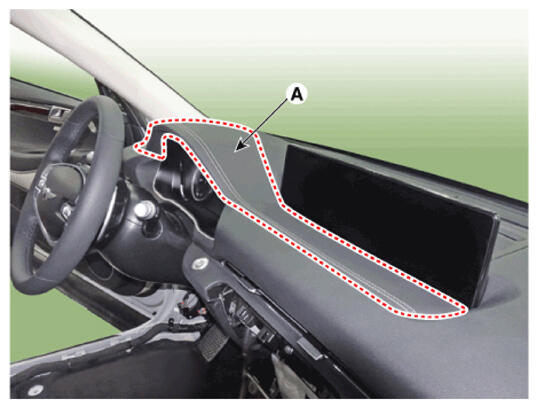

  2. Remove the cluster fascia upper garnish (A).
    G16778247Courtesy of HYUNDAI MOTOR AMERICA

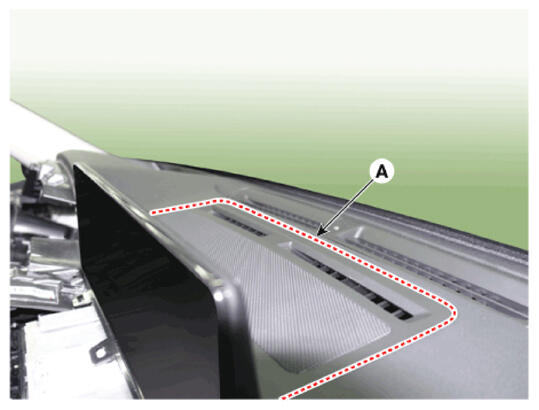

  3. Remove the crash pad upper garnish (A).
    G16778248Courtesy of HYUNDAI MOTOR AMERICA

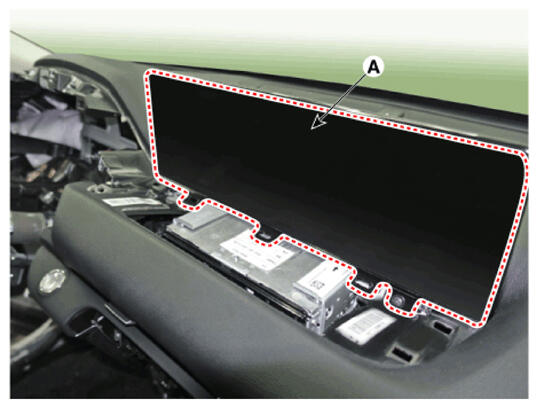

  4. Loosen the mounting screws and remove the front monitor (A).
    G16778249Courtesy of HYUNDAI MOTOR AMERICA

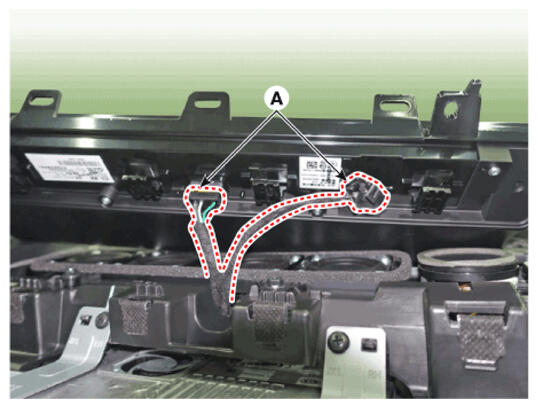

  5. Disconnect the front monitor connectors (A).
    G16778250Courtesy of HYUNDAI MOTOR AMERICA

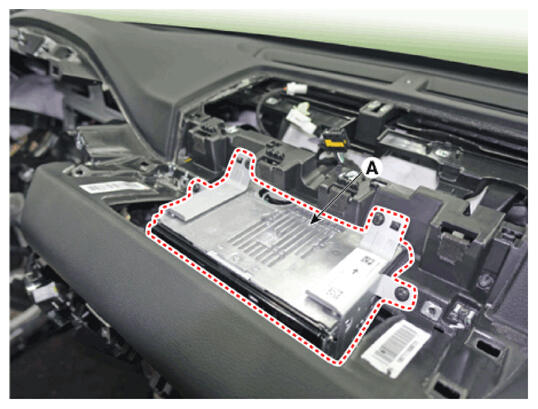

  6. Loosen the mounting screws and remove the H/UNIT (A).
    G16778251Courtesy of HYUNDAI MOTOR AMERICA

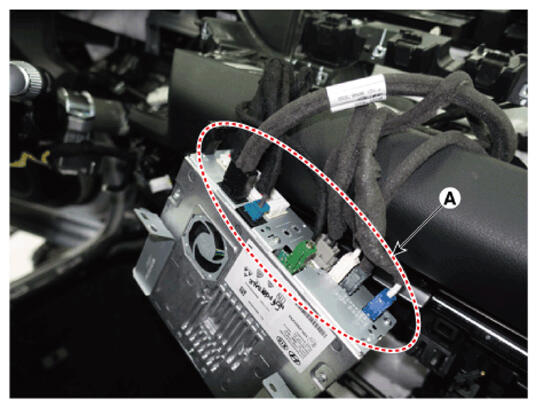

  7. Disconnect the H/UNIT connector (A).
    G16778252Courtesy of HYUNDAI MOTOR AMERICA
