Genesis
>>
2024
>>
GV80 2.5T Advanced
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Communication Devices
>>
Body Control Module Diagnosis
>>
DTC B1810-00: UIP-ROA Sensor Error
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

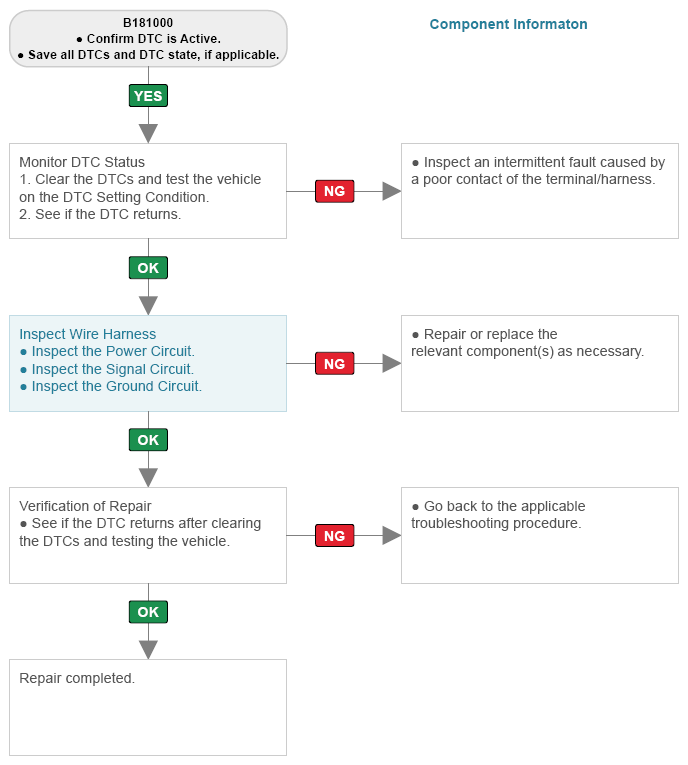

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
