Repair Procedures: Replacement

  1. Remove the front seat assembly.

    (Refer to the Front Seat - "Front Seat Assembly")

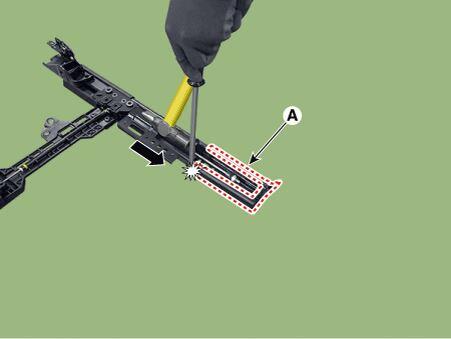

  2. While holding the screwdriver with one hand, strike the mounting cover (A) in the direction of the arrow as shown in the illustration below to remove it.
    G00678317Courtesy of HYUNDAI MOTOR AMERICA
  3. To install, reverse removal procedure.
