Assist Power Window Switch

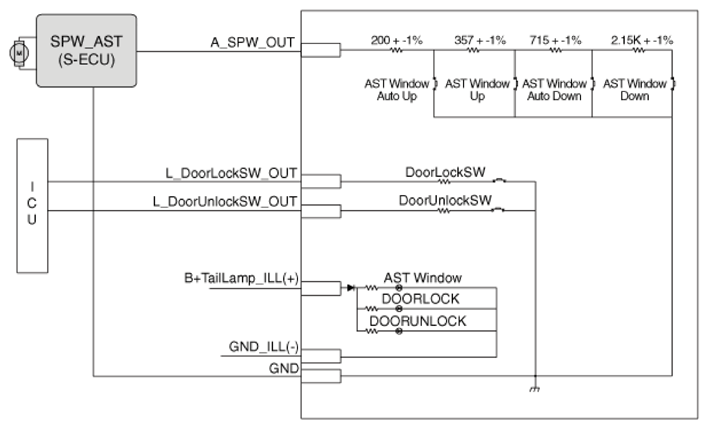

[With Door Lock]

G16832541Courtesy of HYUNDAI MOTOR AMERICA

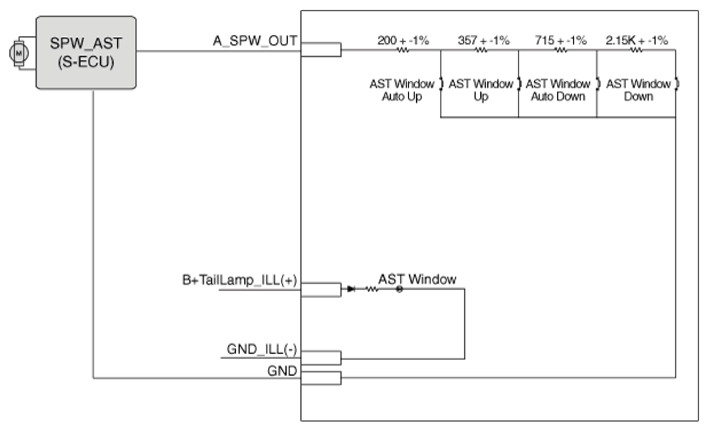

[Without Door Lock]

G16832542Courtesy of HYUNDAI MOTOR AMERICA
