Repair Procedures: Removal

Turn the ignition switch OFF.
Open the tail gate.

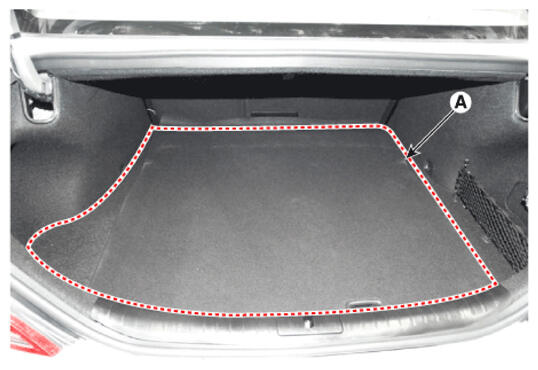

Remove the luggage covering mat (A).

Courtesy of HYUNDAI MOTOR AMERICA

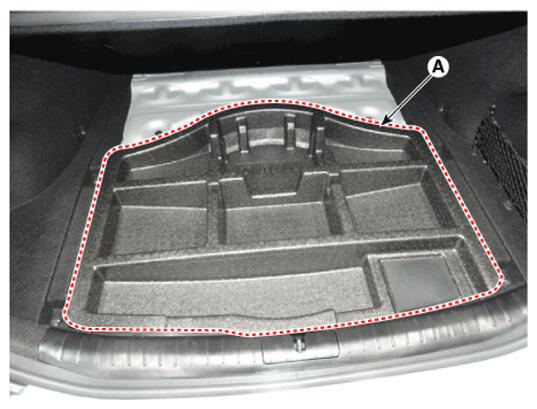

Remove the luggage center tray (A).

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the battery negative (-) terminal (A).
Tightening torque: 5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
Disconnect the battery sensor connector (A).

Courtesy of HYUNDAI MOTOR AMERICA

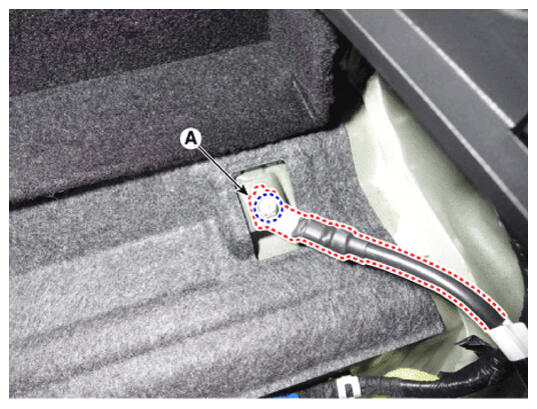

Remove the battery sensor cable after loosening the mounting bolt (A).
Tightening torque: 5.9 - 11.8 N.m (0.6 - 1.2 kgf.m, 4.3 - 8.7 lb-ft)

Courtesy of HYUNDAI MOTOR AMERICA
