Charging System - 2.5L: Alternator: Specifications: Specification

13.5 V 150 A

Item Specification
Form AC power generation
Rated Voltage 13.5 V 150 A
Motor RPM 1, 000 - 18, 000 RPM
Regulator voltage 14.2 - 14.8
Connector pin count 1
Pulley Type OAP

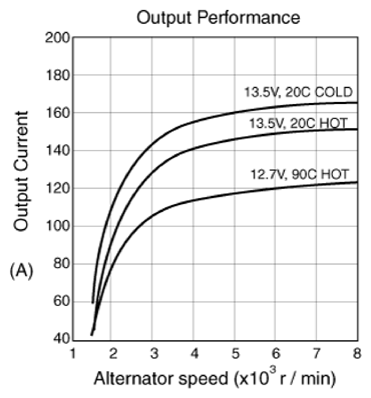

G16829786Courtesy of HYUNDAI MOTOR AMERICA
