Front Radar: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

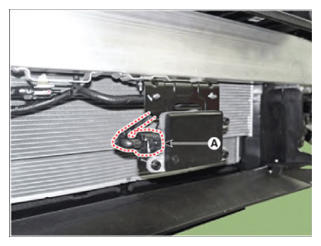

  3. Disconnect the front radar connector (A).
    G14765302Courtesy of HYUNDAI MOTOR AMERICA

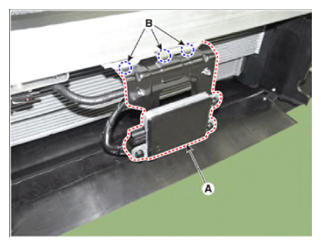

  4. Loosen the mounting nuts (B) and remove the front radar (A).
    G14765303Courtesy of HYUNDAI MOTOR AMERICA
