Removal And Installation: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console armrest.

    (Refer to Body - "CONSOLE ARMREST ")

  3. Remove the console mood lamp.

    (Refer to Body Electrical System - "MOOD LAMP ")

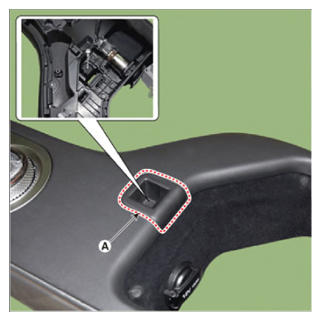

  4. Loosen the mounting screws and remove the floor console storage box bracket (A).
    G14765443Courtesy of HYUNDAI MOTOR AMERICA

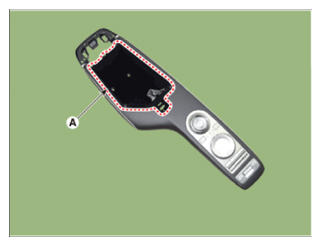

  5. Remove the storage box (A).
    G14765444Courtesy of HYUNDAI MOTOR AMERICA

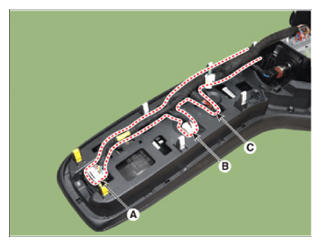

  6. Disconnect the drive mode switch connector (A), AVN keyboard connector (B) and SBW connector (C).
    G14765445Courtesy of HYUNDAI MOTOR AMERICA

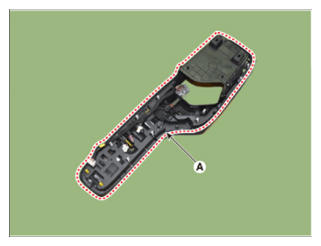

  7. Remove the floor console under cover (A).
    G14765446Courtesy of HYUNDAI MOTOR AMERICA

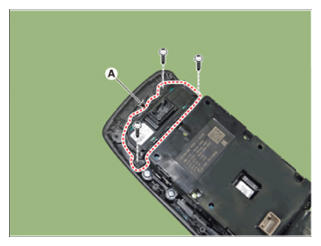

  8. Loosen the mounting screws and remove the drive mode switch (A).
    G14765447Courtesy of HYUNDAI MOTOR AMERICA
