Disassembly And Reassembly

WARNING: This page is about a different variant/trim than selected.

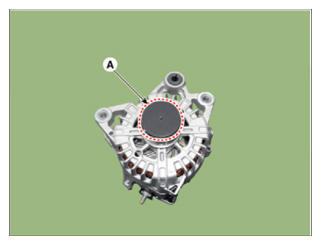

  1. Remove the OAP cap (A).
    G14766089Courtesy of HYUNDAI MOTOR AMERICA
    NOTE:
    • When installing, replace with new OAP cap.

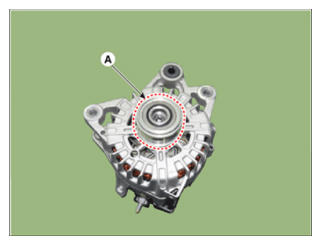

  2. Remove the OAP pulley (A) by using the SST (09373-27000).
    G14766090Courtesy of HYUNDAI MOTOR AMERICA
    G14766091Courtesy of HYUNDAI MOTOR AMERICA

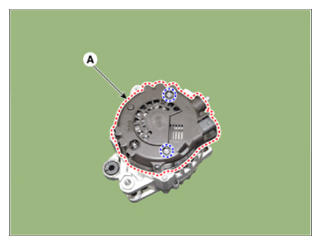

  3. Remove the alternator cover (A) after loosening the mounting nut.
    G14766092Courtesy of HYUNDAI MOTOR AMERICA

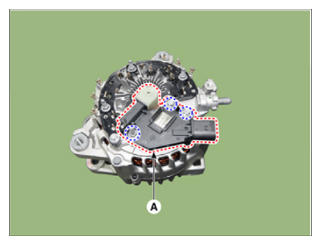

  4. Remove the regulator assembly (A).
    G14766093Courtesy of HYUNDAI MOTOR AMERICA

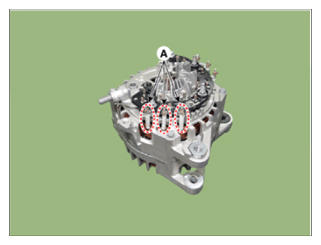

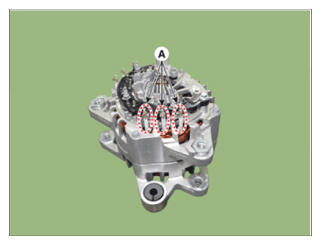

  5. Unsolder the stator leads (A).
    G14766094Courtesy of HYUNDAI MOTOR AMERICA
    G14766095Courtesy of HYUNDAI MOTOR AMERICA

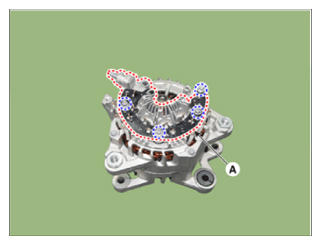

  6. Remove the rectifier assembly (A).
    G14766096Courtesy of HYUNDAI MOTOR AMERICA

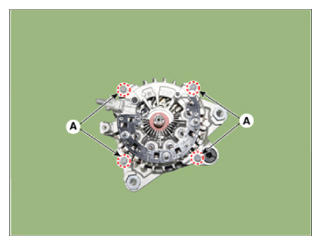

  7. Remove the 4 through bolts (A).
    G14766097Courtesy of HYUNDAI MOTOR AMERICA

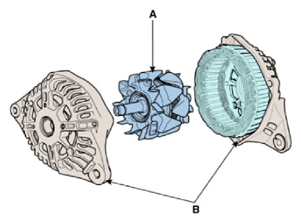

  8. Separate the rotor (A) and cover (B).
    G14766098Courtesy of HYUNDAI MOTOR AMERICA
  9. Reassemble in the reverse order of disassembly.
    NOTE:
    • When installing, replace with new OAP cap.
