Identity Authentication Unit Diagnosis
>>
DTC B165A-00: BLE Module Fault
>>
Troubleshooting
>>

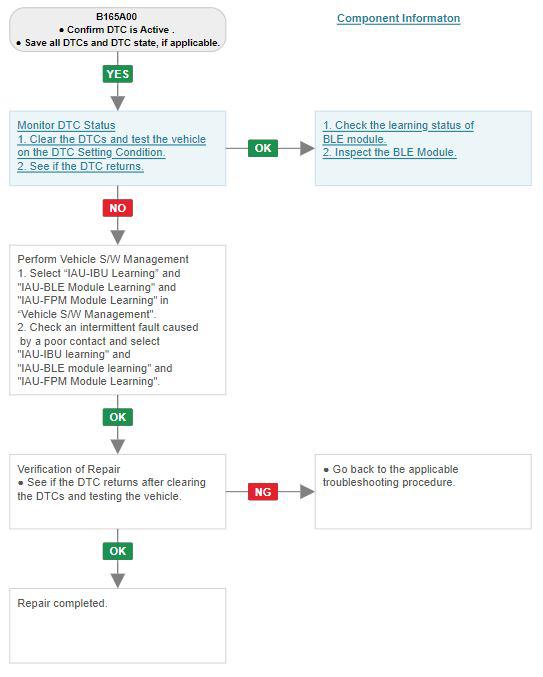

Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
