Diagnostic Flow-chart

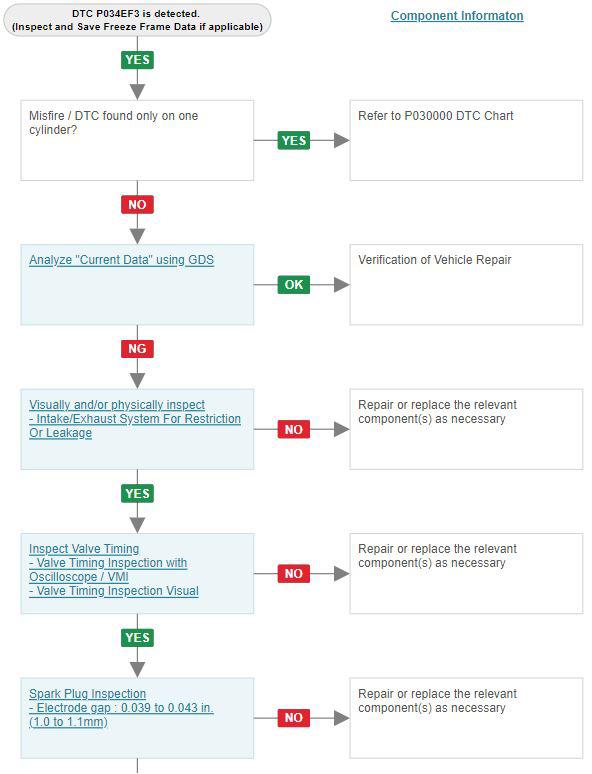

Fig 1: P034E-F3 (1 Of 2)
G15556280Courtesy of HYUNDAI MOTOR AMERICA

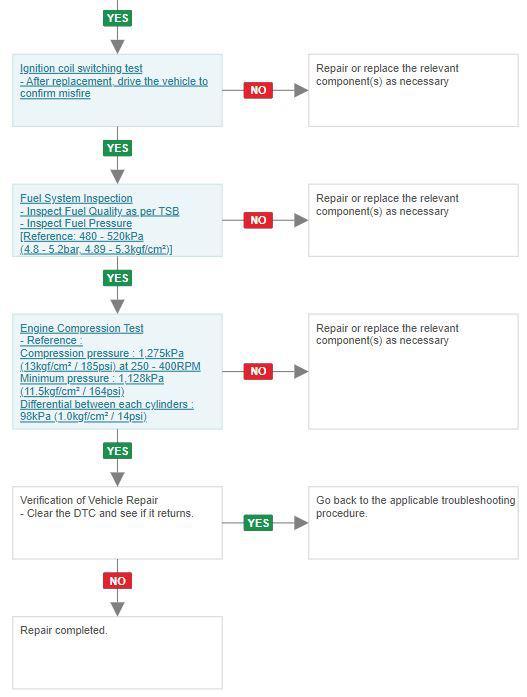

Fig 2: P034E-F3 (2 Of 2)
G00638640Courtesy of HYUNDAI MOTOR AMERICA
