Repair Procedures: Replacement: Notes

WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Put on gloves to prevent hand injuries.

NOTE:

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
When removing the interior trim pieces, use a plastic panel removal tool not to damage the surface.
Take care not to bend or scratch the trim and panels.

Using a screwdriver or remover, remove the console side cover (A).

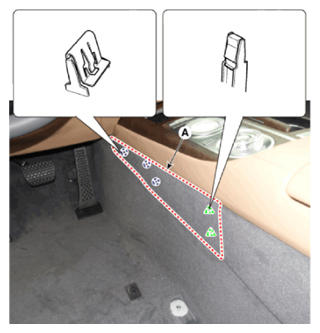

[LH]

Courtesy of HYUNDAI MOTOR AMERICA

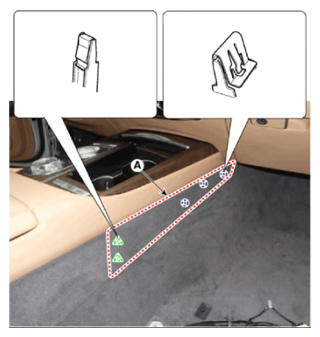

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

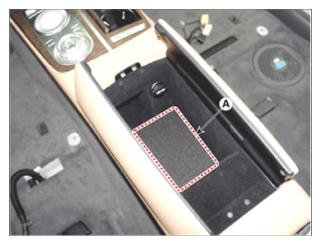

Remove the console armrest service cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

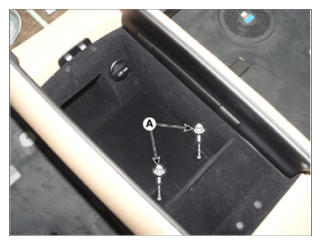

Loosen the console armrest mounting bolts.

Courtesy of HYUNDAI MOTOR AMERICA

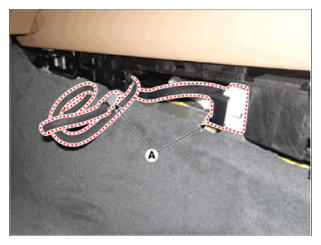

Detach the console lower extension wiring connector (A), by press the lock pin.
[LH]

Courtesy of HYUNDAI MOTOR AMERICA

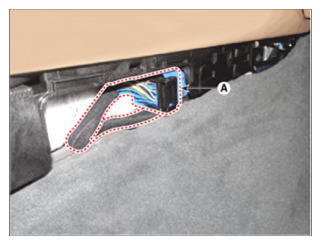

[RH]

Courtesy of HYUNDAI MOTOR AMERICA

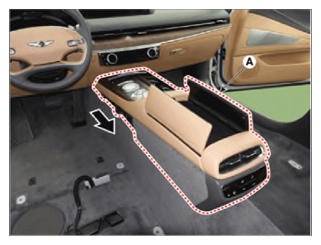

Remove the floor console assembly (A), by pulling it forward.

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
