Console Upper Cover Assembly
WARNING: This page is about a different car, the 2024 Genesis G80. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the floor console assembly
(Refer to floor console - FLOOR CONSOLE ASSEMBLY )

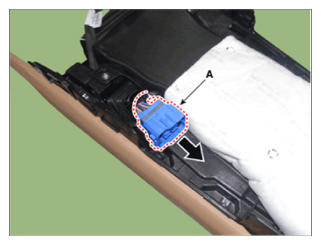

- Detach the floor console assembly lower console upper cover connector (A), by direction of the arrow.

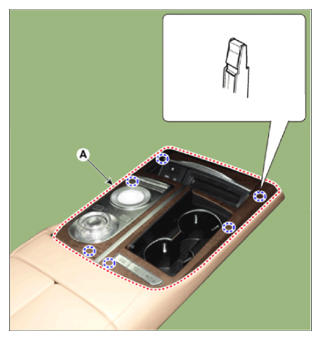

- Using a screwdriver or remover, remove the console upper cover (A).
- To install, reverse the removal procedure.
Information
- Make sure the connector is connected properly.
- Replace any damage clips.
