Trunk Antenna

  1. Disconnect the negative (-) battery terminal.
  2. Remove the trunk transverse trim.

    (Refer to Body - "TRUNK LID TRIM ")

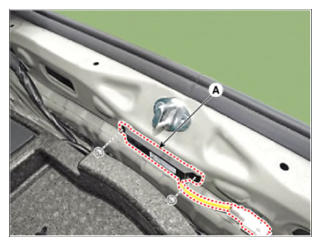

  3. Disconnect the connector and then remove the trunk antenna (A).
    G15589763Courtesy of HYUNDAI MOTOR AMERICA
