Repair Procedures: Removal

  1. Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
  2. Remove the drive belt.

    (Refer to Engine Mechanical System - "DRIVE BELT ")

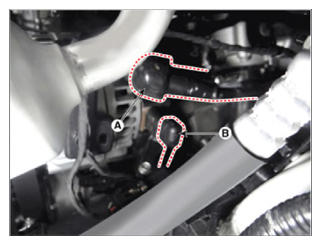

  3. Disconnect the alternator connector (B), and remove the cable (A) from alternator "B" terminal.
    G15586942Courtesy of HYUNDAI MOTOR AMERICA

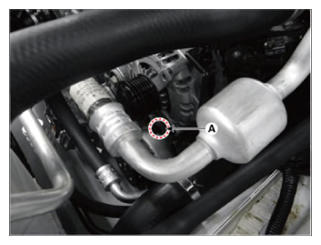

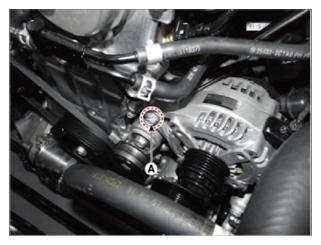

  4. Remove the alternator lower bolt and upper bolt (A).
    G15586943Courtesy of HYUNDAI MOTOR AMERICA
    G15586944Courtesy of HYUNDAI MOTOR AMERICA

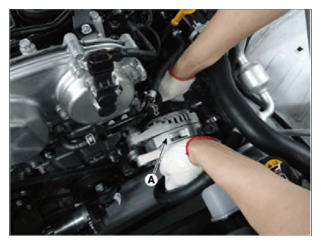

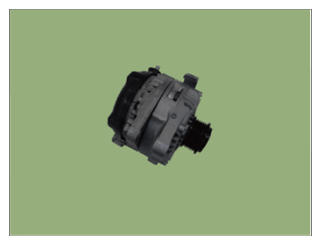

  5. Remove the alternator (A).
G15586945Courtesy of HYUNDAI MOTOR AMERICA
G15586946Courtesy of HYUNDAI MOTOR AMERICA
