Repair Procedures: Removal

  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the front bumper assembly.

    (Refer to Body - "FRONT BUMPER ASSEMBLY ")

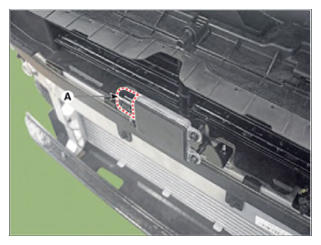

  3. Disconnect the front radar connector (A).
    G15590520Courtesy of HYUNDAI MOTOR AMERICA

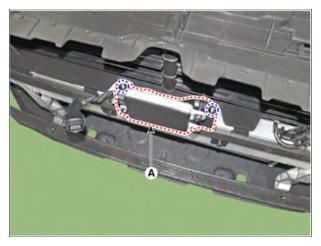

  4. Remove the front radar (A) after loosening mounting nuts.

    Front radar nuts:  9.5 - 10.5 N.m (0.97 - 1.07 kgf.m, 7.0 - 7.7 lb-tt)

    G15590521Courtesy of HYUNDAI MOTOR AMERICA
