Oil Temperature Sensor: Installation

  1. Install in the reverse order of removal.
NOTE:

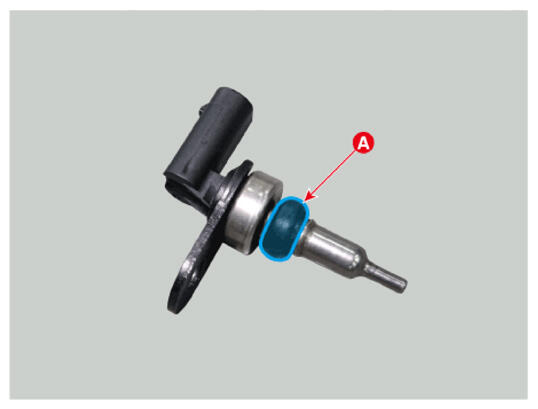

  • Replace the O-ring (A) with a new one.
G16820691Courtesy of HYUNDAI MOTOR AMERICA
