Components And Components Location: Components

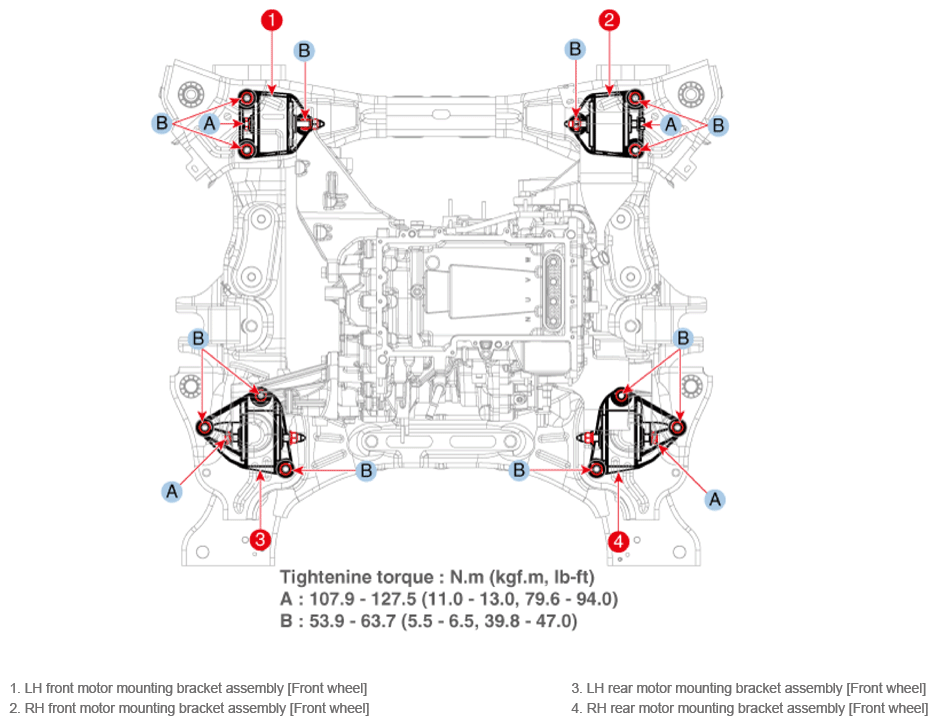

Fig 1: Front Motor And Reduction Gear Mounting Components Location With Torque Specifications
G16820508Courtesy of HYUNDAI MOTOR AMERICA
