Components And Components Location: Components

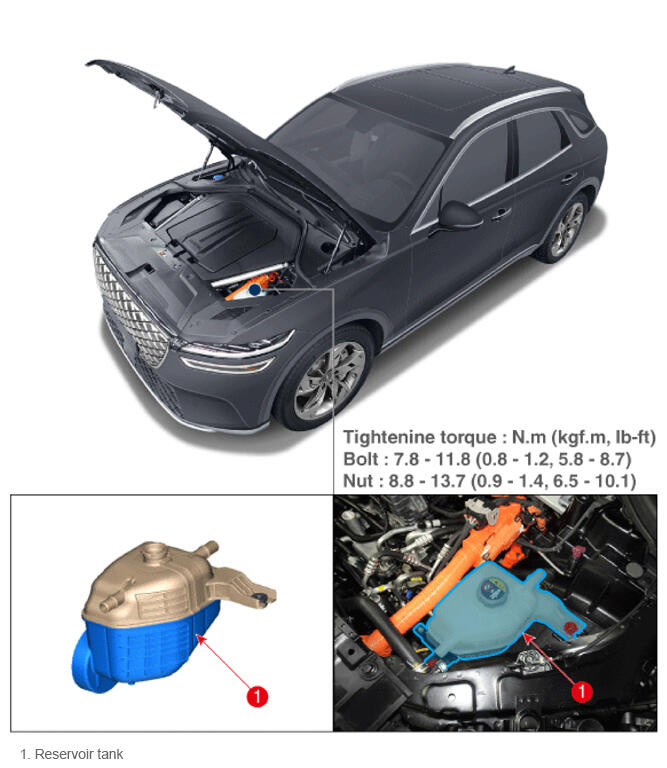

Fig 1: Reservoir Tank Components Location With Torque Specifications
G16820342Courtesy of HYUNDAI MOTOR AMERICA
