Initialize The Enrolled Fingerprint

  1. Connect the diagnostic device to the connector (16 pins) under the crash pad of the driver seat. Start the motor (IGN ON) and turn on the diagnostic device.

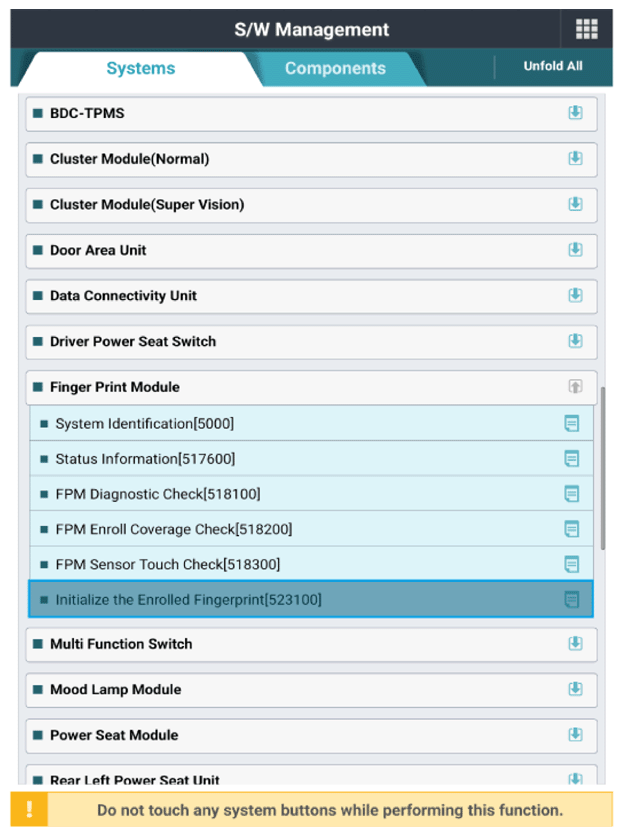

  2. Select "S/W Management," then "Finger Print Module."
  3. Select "Initialize the Enrolled Fingerprint".
G16820159Courtesy of HYUNDAI MOTOR AMERICA

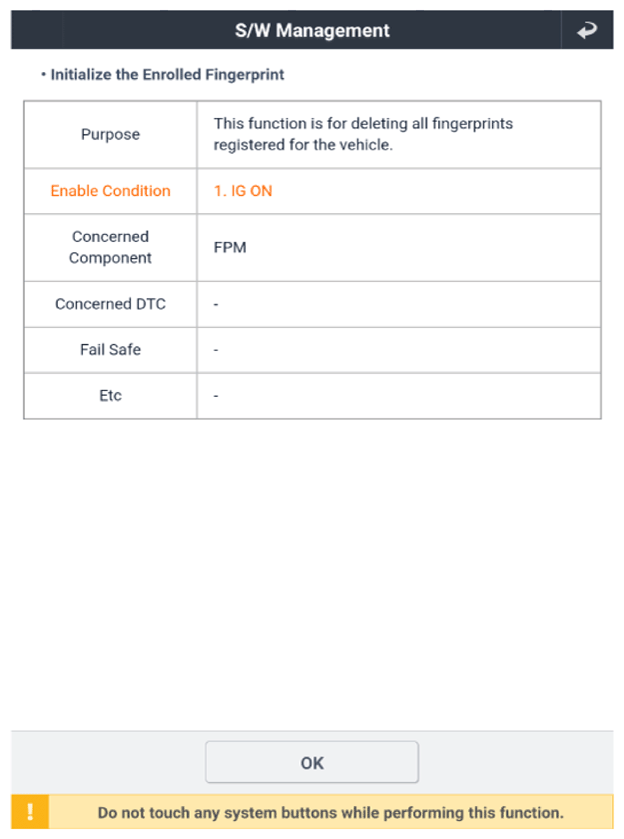

G16820160Courtesy of HYUNDAI MOTOR AMERICA

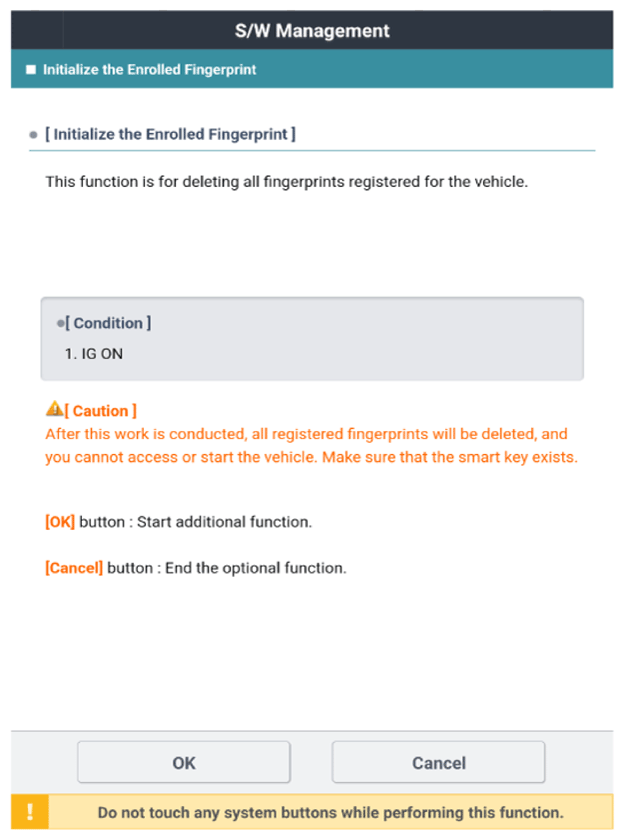

G16820161Courtesy of HYUNDAI MOTOR AMERICA

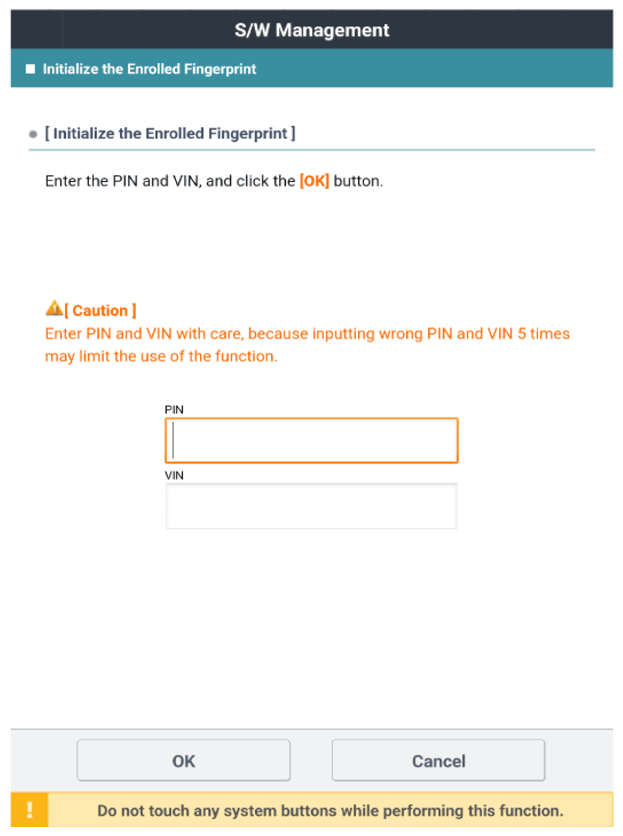

G16820162Courtesy of HYUNDAI MOTOR AMERICA

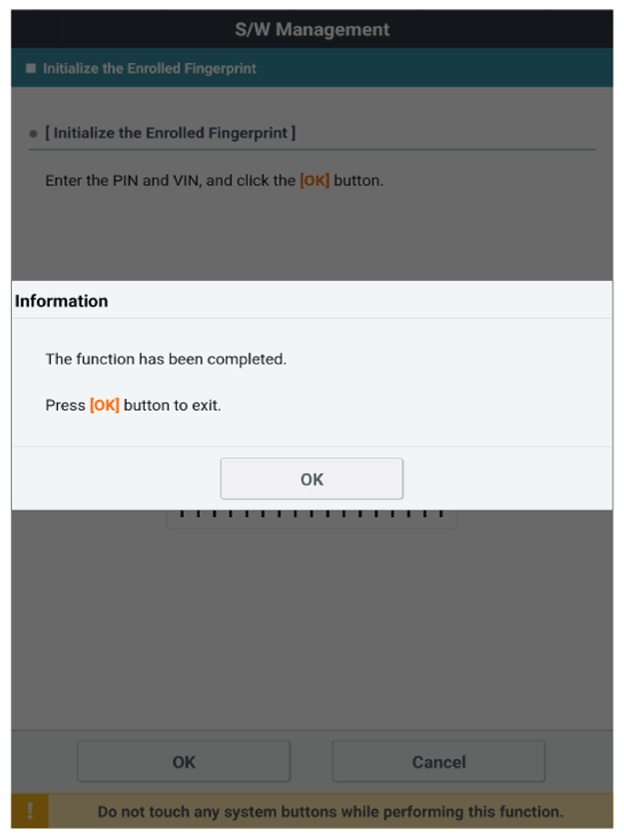

G16820163Courtesy of HYUNDAI MOTOR AMERICA
