eCall Parameter Download

eCall Parameter Download is used to change the parameter value of the eCall law in Europe.

1. Turn the ignition switch OFF.
2. Connect the diagnostic tools.
3. Turn the ignition switch ON without the engine running.

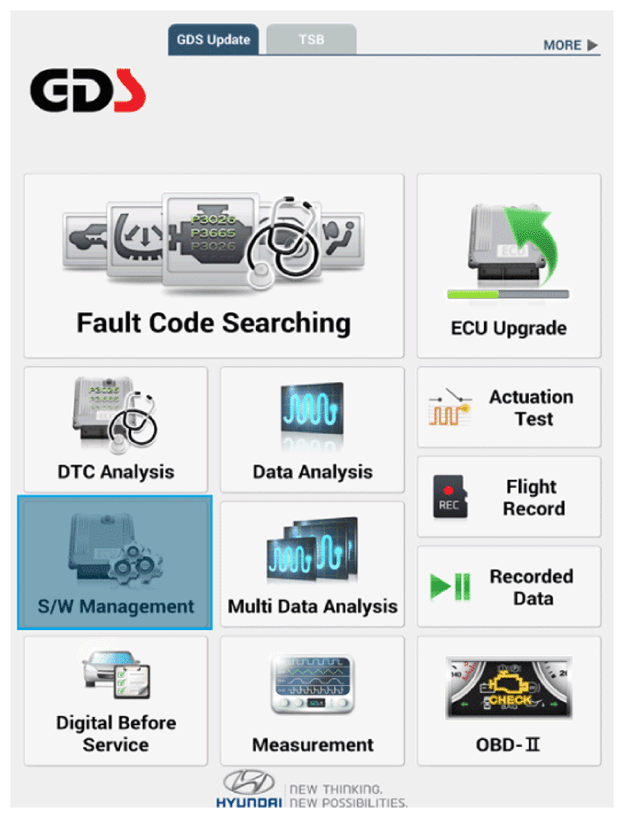

4. Select the "Car Model" and "S/W Management".

   Courtesy of HYUNDAI MOTOR AMERICA

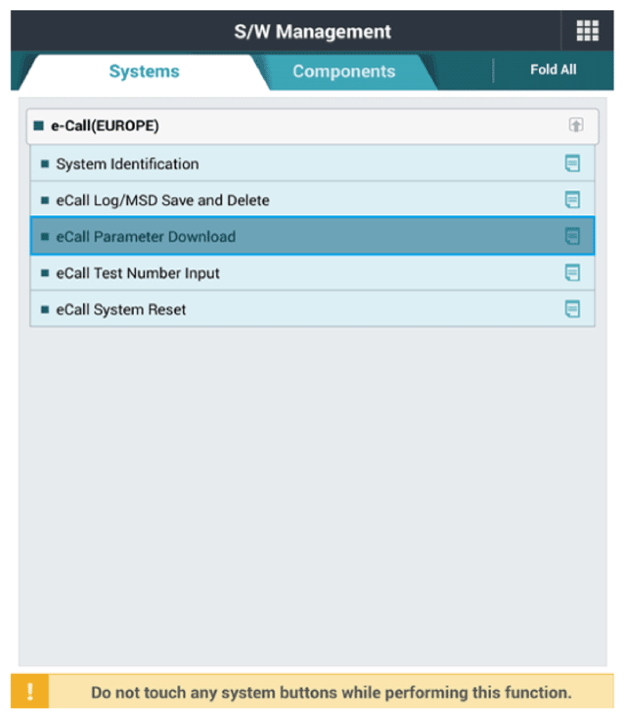

5. Select the "eCall Parameter Download"

   Courtesy of HYUNDAI MOTOR AMERICA

6. Follow the screen instructions to perform the "eCall Parameter Download".

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
