Front Corner Radar: Removal

NOTE:

Read the specification information of the existing front corner radar before replacing it with a new one.

Disconnect the battery negative (-) terminal.
Turn off the ignition switch and disconnect the battery (-) terminal.
Remove the front bumper assembly.
(Refer to Body (Interior/Exterior/Electrical) - "FRONT BUMPER ASSEMBLY ")

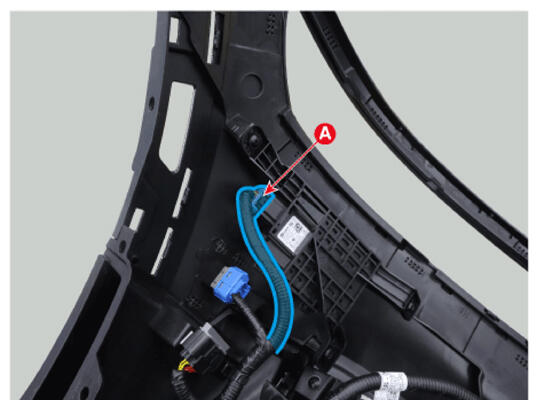

Disconnect the front corner radar connector (A).

Courtesy of HYUNDAI MOTOR AMERICA
Remove the front corner radar (A) after removing the mounting screws.

Courtesy of HYUNDAI MOTOR AMERICA

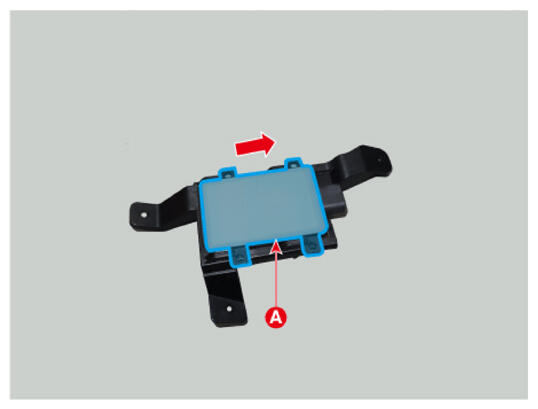

Remove the front corner radar (A) in the direction of the arrow after press the fixing hook.

Courtesy of HYUNDAI MOTOR AMERICA

NOTE:

When removing the front corner radar, be careful not to damage the bracket.
If the bracket is deformed or damaged, the installed radar will not operate normally.

Information

If the radar/bracket/connector, etc. is damaged, replace the front corner radar assembly.
