Home >> Genesis >> 2023 >> Electrified GV70 Advanced >> Repair and Diagnosis (Single Page) >> Accessories & Equipment >> Communication Devices >> SBW Control Unit (SCU) Diagnosis >> DTC P0601-41: Internal Control Module Memory Check Sum Error >> Troubleshooting >> Diagnostic Flowchart
July 1: So it begins. Don't worry, this is not in the correct legal jurisdiction!

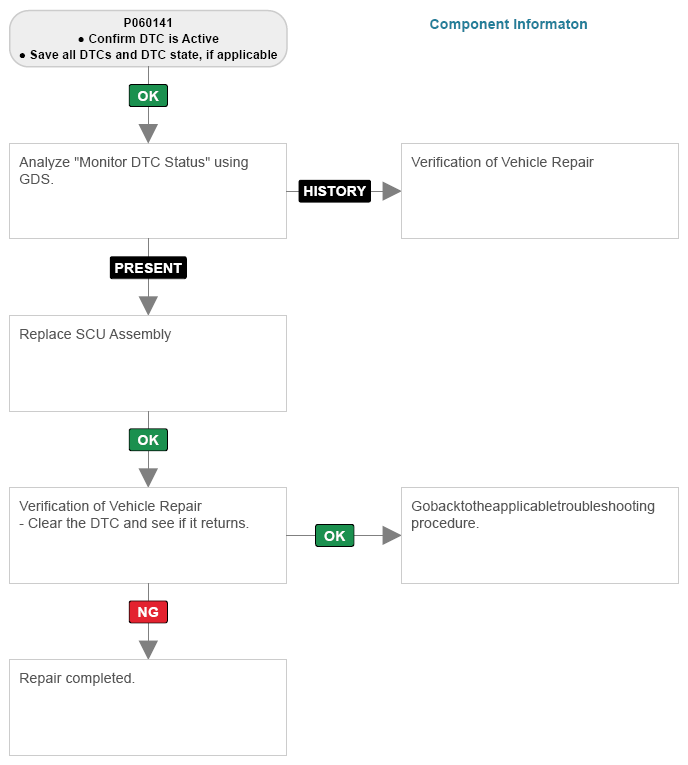

Diagnostic Flowchart

G16824589Courtesy of HYUNDAI MOTOR AMERICA
