Components And Components Location: Component

Courtesy of HYUNDAI MOTOR AMERICA

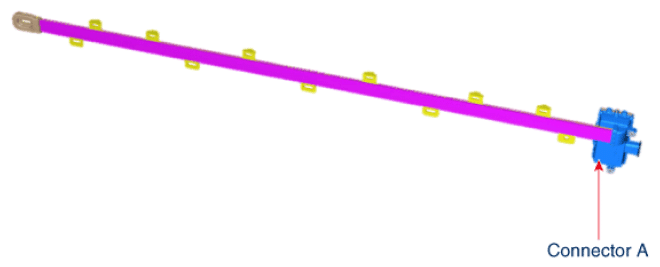

Connector A
Courtesy of HYUNDAI MOTOR AMERICA
Pin	Description
1	IGN1
2	CAN High
3	Active hood actuator LH (+)
4	Active hood actuator RH (+)
5	-
6	-
7	-
8	Can Low
9	Active hood actuator LH (-)
10	Active hood actuator RH (-)
11	-
12	Ground
