Removal And Installation
- Disconnect the battery negative (-) terminal.

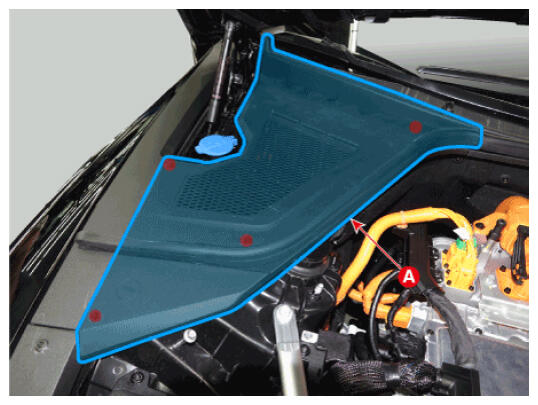

- Remove the power electric side cover [RH] (A) after removing the fasteners.

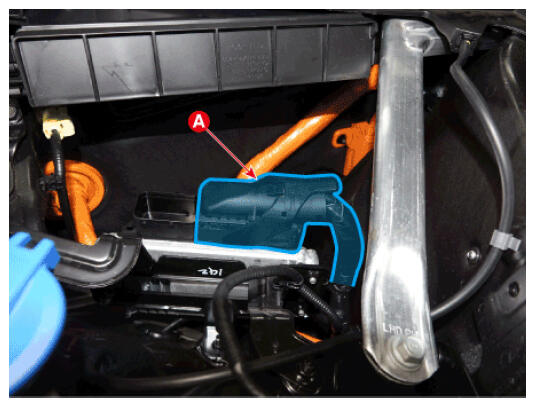

- Disconnect the vehicle control unit (VCU) connector (A).

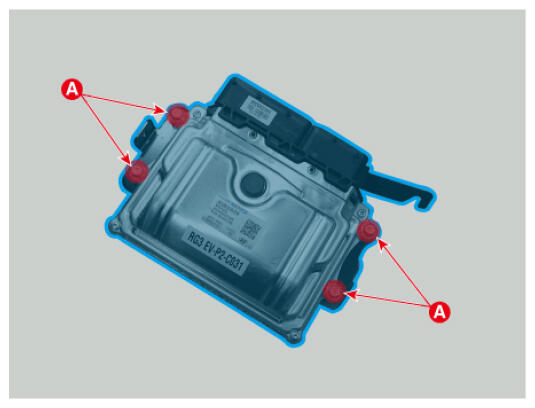

- Remove the vehicle control unit (VCU) from the bracket by removing the nuts (A).
Tightening Torque:
7.8 - 11.8 N.m (0.8 - 1.2 kgf.m, 5.8 - 8.7 lb-ft)
- Install in the reverse order of removal.
