Body Control Module Diagnosis
>>
DTC B163E-00: RSM LIN Fault
>>
Troubleshooting
>>
Diagnostic Flow-Chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

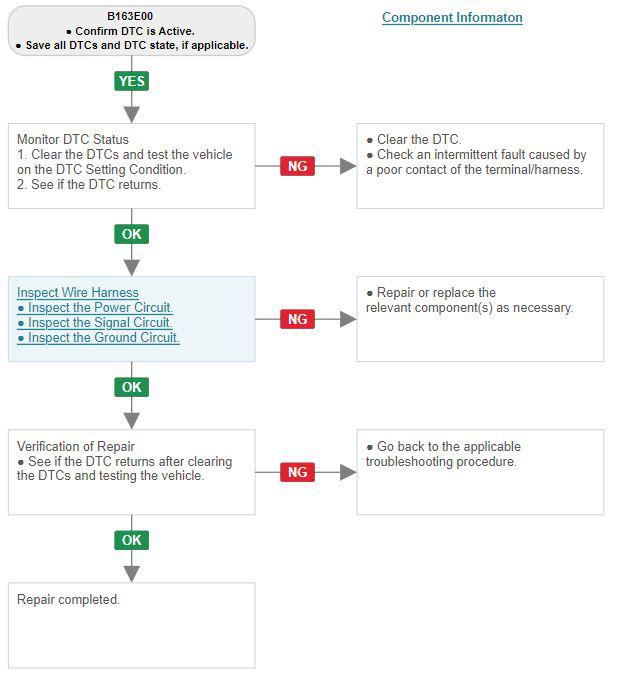

Diagnostic Flow-Chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
