Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.

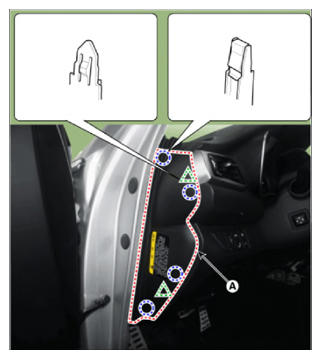

  2. Remove the crash pad side cover [LH] (A).
    G15590106Courtesy of HYUNDAI MOTOR AMERICA

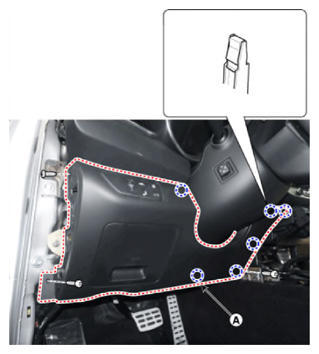

  3. Loosen the mounting screws and remove the crash pad lower panel (A).
    G15590107Courtesy of HYUNDAI MOTOR AMERICA

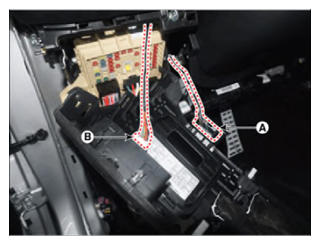

  4. Disconnect the diagnosis connector (A) and lower panel switch connector (B).
    G15590108Courtesy of HYUNDAI MOTOR AMERICA

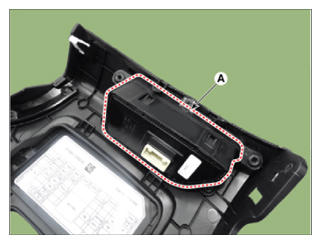

  5. Remove the crash pad lower switch (A) after disengaging the mounting clip.
    G15590109Courtesy of HYUNDAI MOTOR AMERICA
