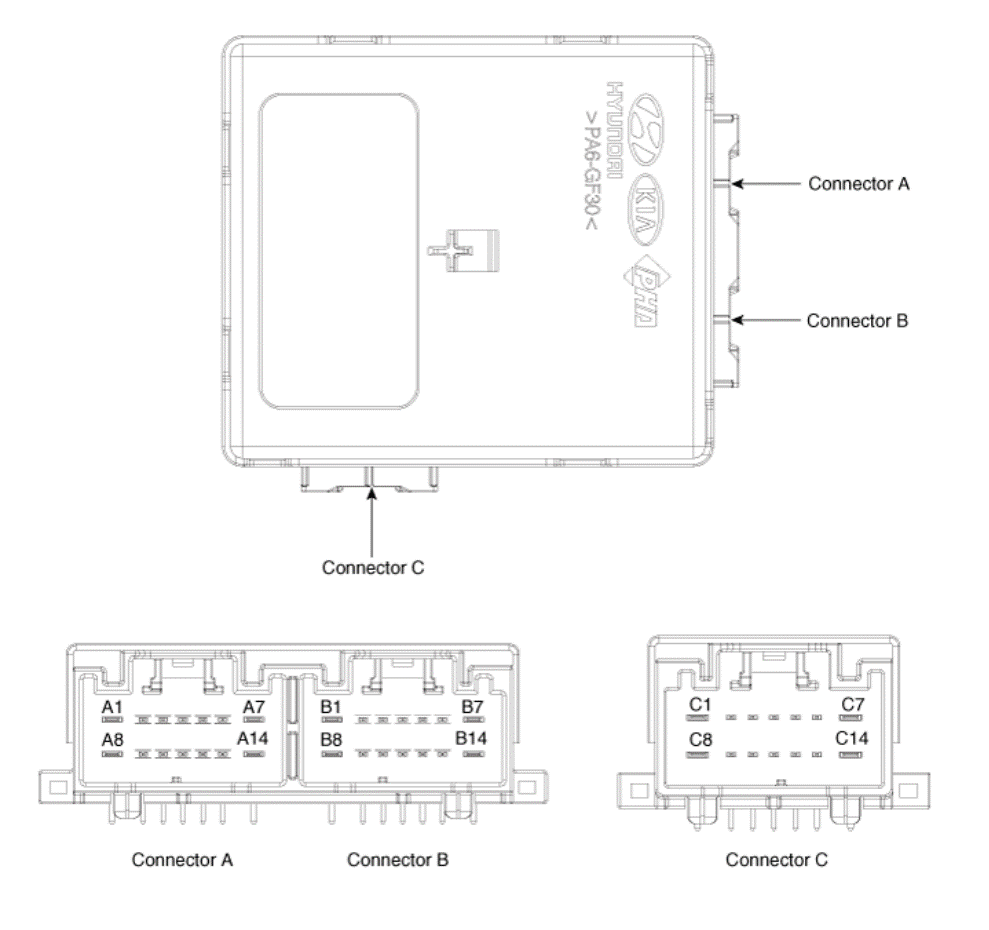

Power Trunk Module (PTM)

Courtesy of HYUNDAI MOTOR AMERICA

Pin NO	Connector A	Connector B	Connector C
1	System power	Cinching motor (+)	-
2	Trunk inner switch indicator	Pawl switch	-
3	-	Catch switch	Drive shield ground
4	H-CAN (High)	Cancel lever switch	-
5	H-CAN (Low)	-	-
6	Buzzer	Latch switch ground	Hall sensor power
7	-	System switch	Driver unit motor (+)
8	Motor power	Cinching motor (-)	-
9	-	Crash pad switch	-
10	-	Trunk inner switch	-
11	Trunk inner lock switch	Hall position switch	Hall sensor ground
12	-	-	Hall sensor channel 1
13	-	-	Hall sensor channel 2
14	-	Ground power	Driver unit motor (-)
