Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

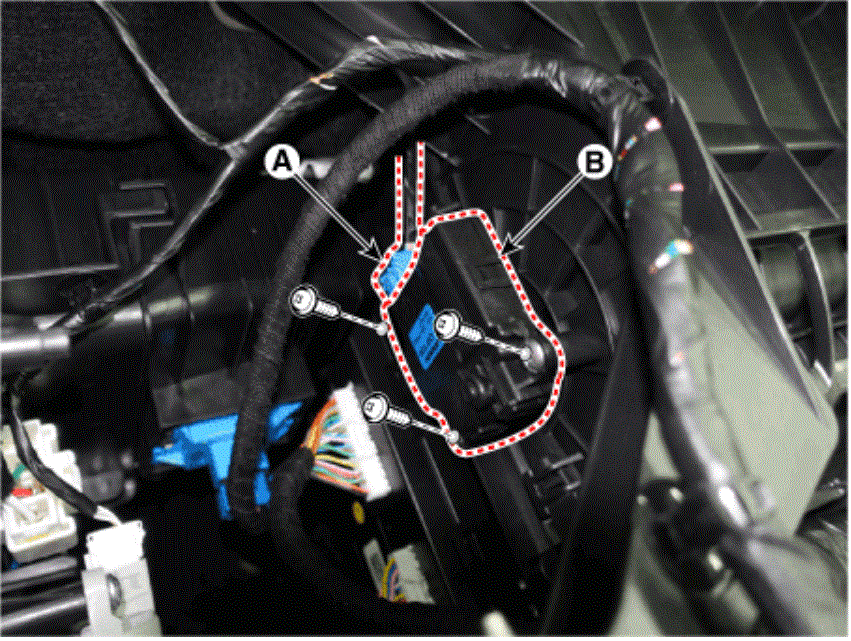

  3. Disconnect the intake actuator connector (A), loosen the mounting screws and remove the intake actuator (B).
    G14727549Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
