Engine Control System Diagnosis - 3.5L (7 Of 9)
>>
DTC P2178-00: System Too Rich Off Idle Bank 1
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart

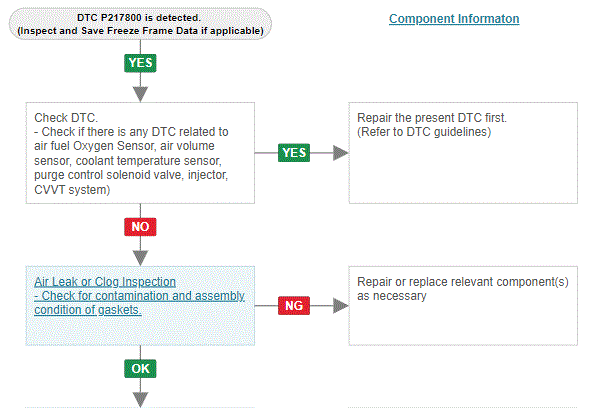

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

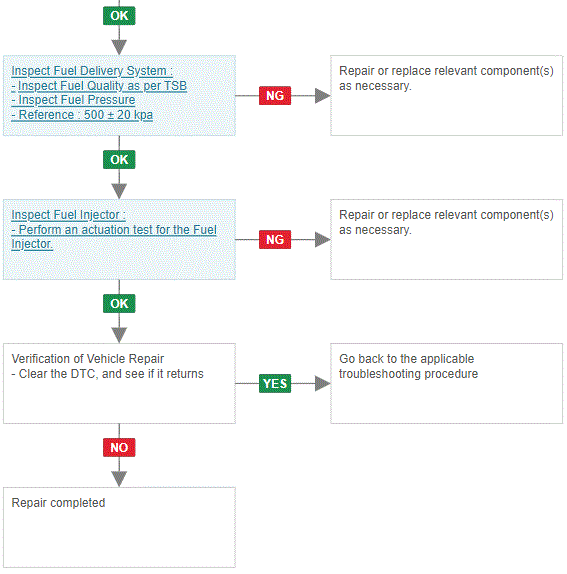

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
