Engine Control System Diagnosis - 3.5L (7 Of 9)
>>
DTC P2068-00: Fuel Level Sensor 'B' Circuit High
>>
Troubleshooting
>>

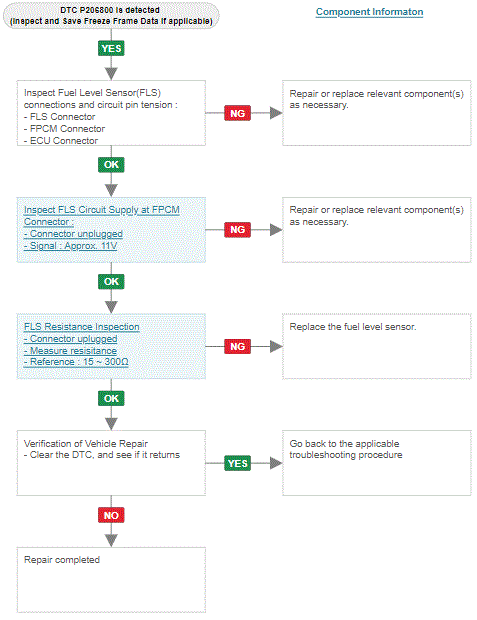

Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
