Connector assembly status test

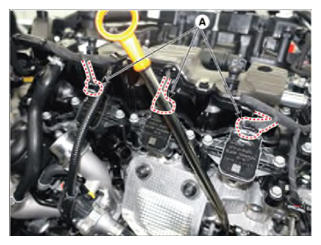

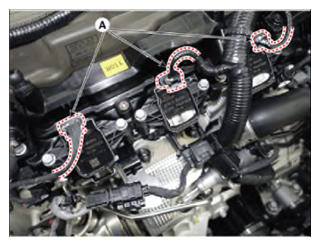

  1. Remove the connector (A) and reinstall it.
    G14728542Courtesy of HYUNDAI MOTOR AMERICA
    G14728543Courtesy of HYUNDAI MOTOR AMERICA

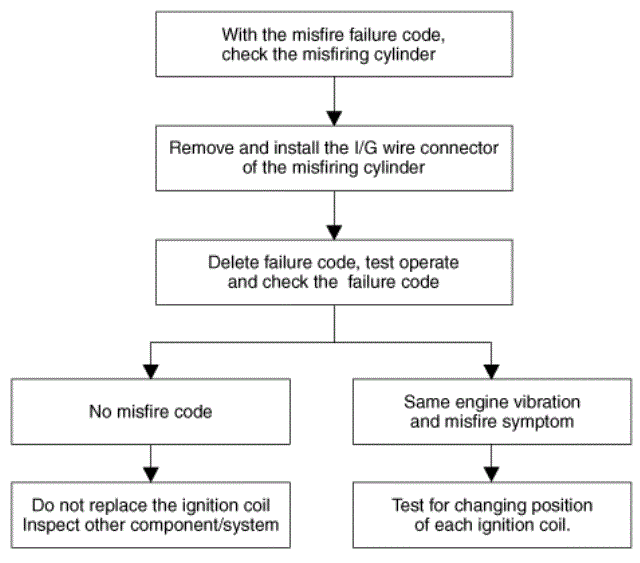

    G14728544Courtesy of HYUNDAI MOTOR AMERICA
