Repair Procedures: Replacement: LH

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to Body (Interior and Exterior) - "CRASH PAD LOWER PANEL ")

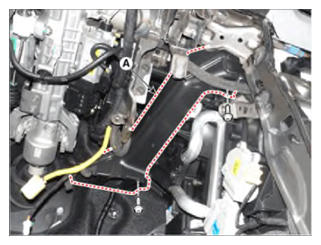

  3. Loosen the mounting screws and remove the shower duct [LH] (A).
    G14727480Courtesy of HYUNDAI MOTOR AMERICA

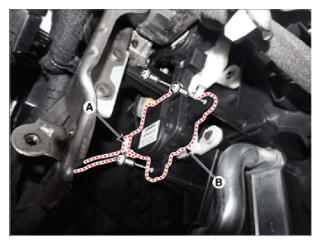

  4. Separate the temperature control actuator connector (A) and loosen the mounting screw and remove the temperature control actuator (B).
    G14727481Courtesy of HYUNDAI MOTOR AMERICA
  5. Install in the reverse order of removal.
