Engine Control System Diagnosis - 2.5L (6 Of 6)
>>
DTC U0101-F9: Lost Communication With TCM
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible

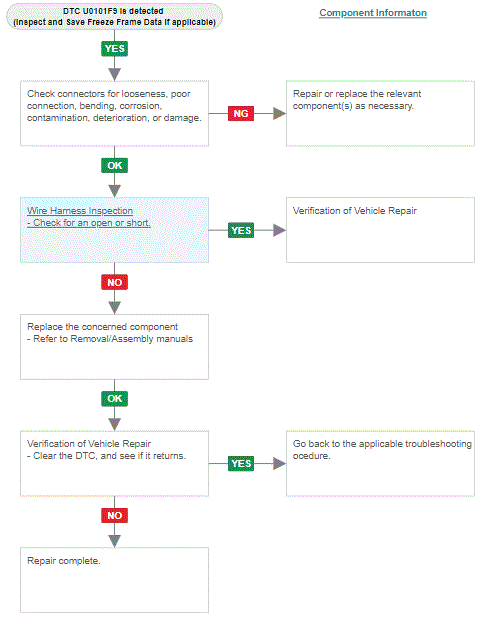

Diagnostic Flowchart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
