Engine Control System Diagnosis - 2.5L (6 Of 6)
>>
DTC P2541-00: Low Pressure Fuel System Sensor Circuit Low
>>
Troubleshooting
>>
Diagnostic Flowchart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flowchart

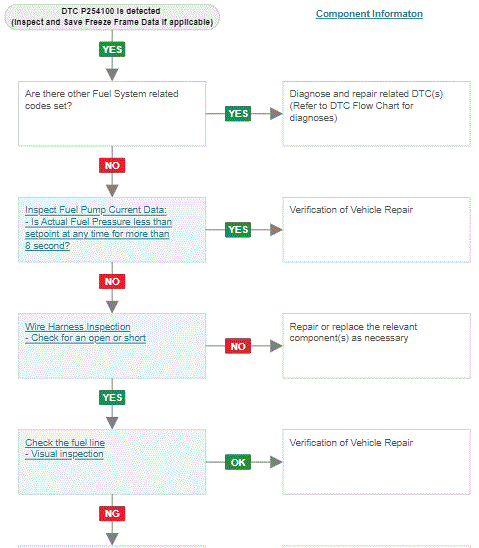

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

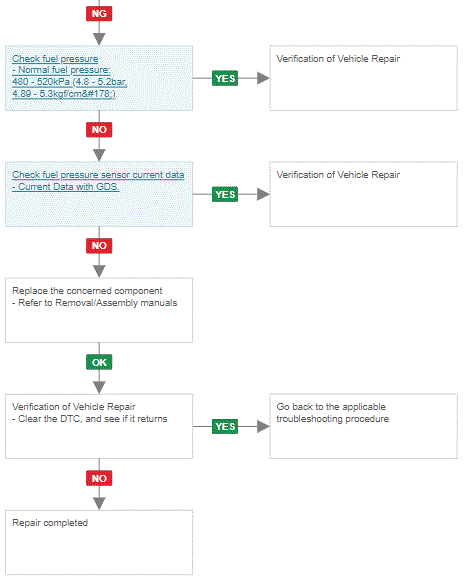

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
