Engine Control System Diagnosis - 2.5L (1 Of 6)
>>
DTC P00DF-24: Engine Coolant Temperature Sensor 2 Circuit Range/Performance
>>
Troubleshooting
>>
Diagnostic Flowchart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Diagnostic Flowchart

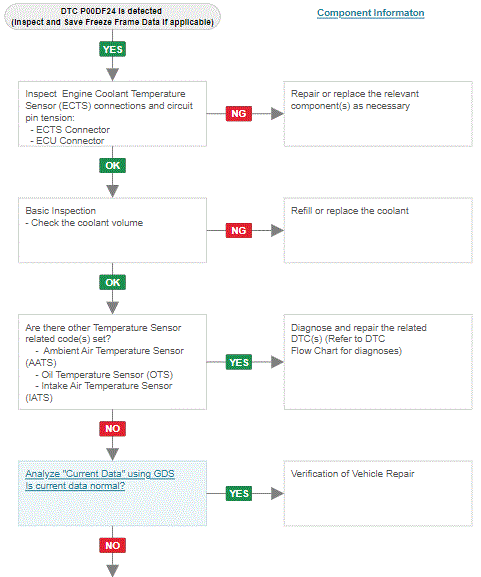

Fig 1: 1 Of 2
Courtesy of HYUNDAI MOTOR AMERICA

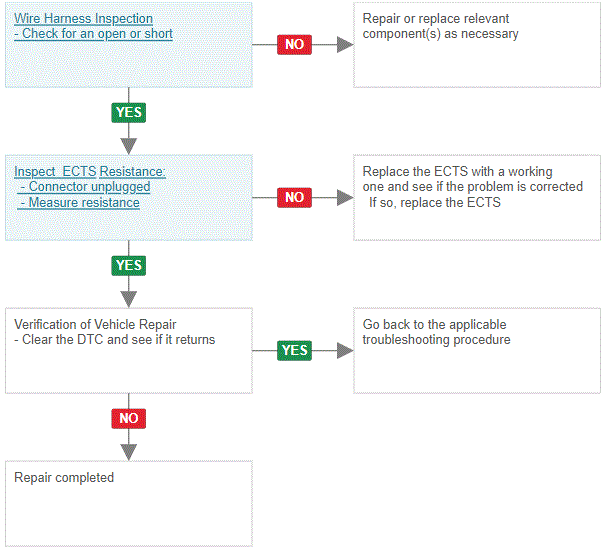

Fig 2: 2 Of 2
Courtesy of HYUNDAI MOTOR AMERICA
