Repair Procedures: Inspection

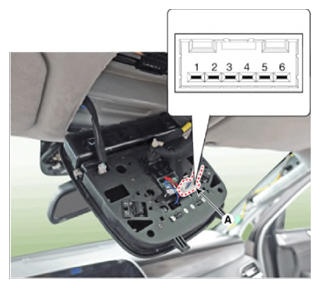

  1. Remove the overhead console lamp connector (A) then check for continuity between terminals. If the continuity is not as specified, replace the map lamp switch.
G14727203Courtesy of HYUNDAI MOTOR AMERICA
