Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the floor console upper cover.

    (Refer to Body - "FLOOR CONSOLE ASSEMBLY ")

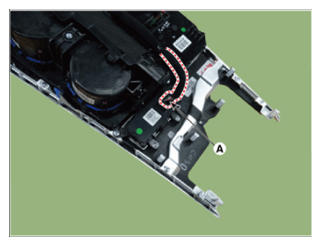

  3. Disconnect the parking/view switch connector (A).
    G14727787Courtesy of HYUNDAI MOTOR AMERICA

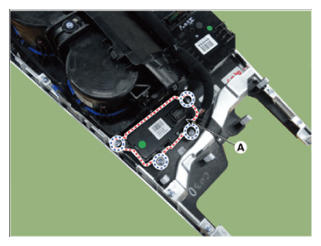

  4. Loosen the mounting screws and remove the parking/view switch (A).
G14727788Courtesy of HYUNDAI MOTOR AMERICA

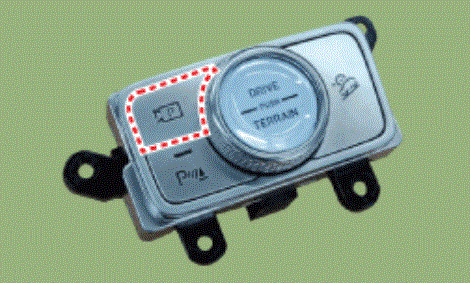

G14727789Courtesy of HYUNDAI MOTOR AMERICA
