Circuit Diagram

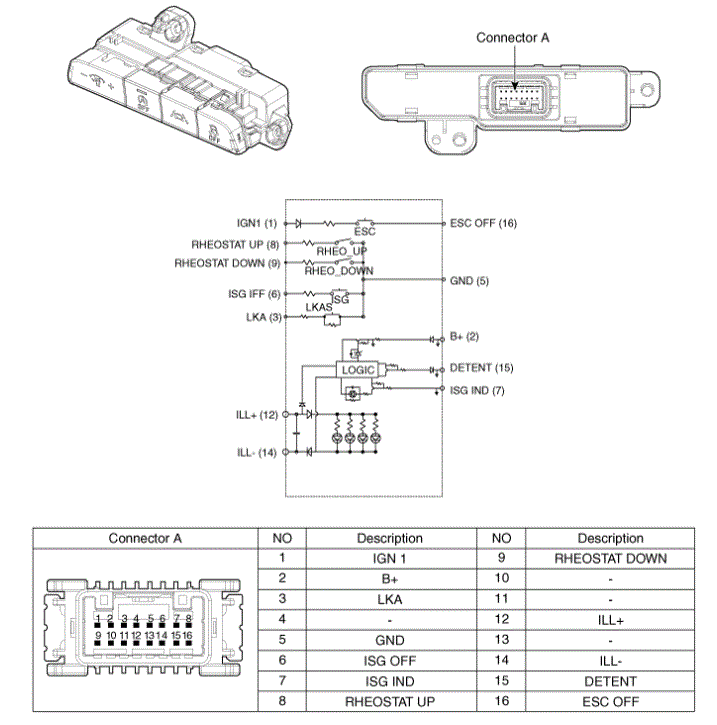

Fig 1: Lane Safety Button Connector End View And Terminal Description
Courtesy of HYUNDAI MOTOR AMERICA
