Repair Procedures: Disassembly

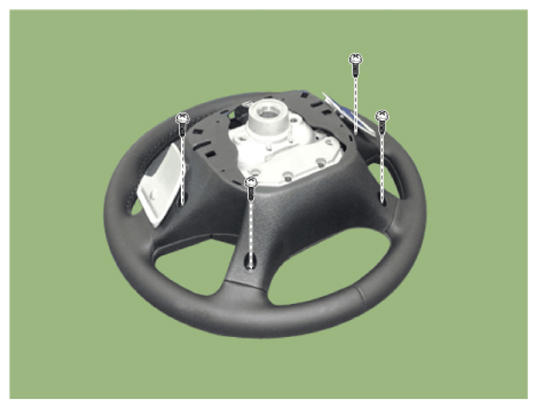

- Remove the screw and then separate the lower cover.
 Courtesy of HYUNDAI MOTOR AMERICA
|

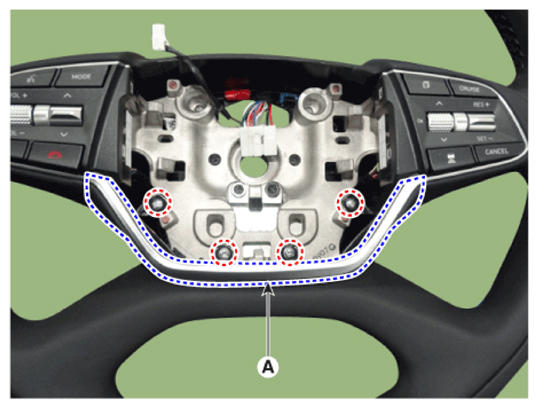

- Remove the screw and then separate the upper cover (A).
 Courtesy of HYUNDAI MOTOR AMERICA
|

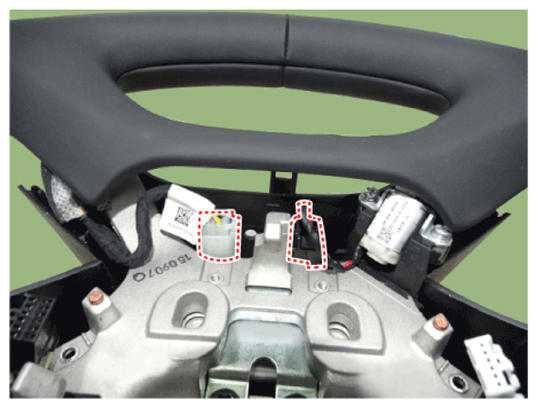

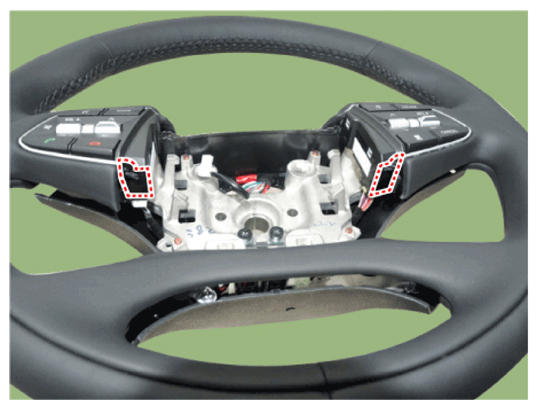

- Disconnect the steering wheel connector.
 Courtesy of HYUNDAI MOTOR AMERICA
|
 Courtesy of HYUNDAI MOTOR AMERICA
|

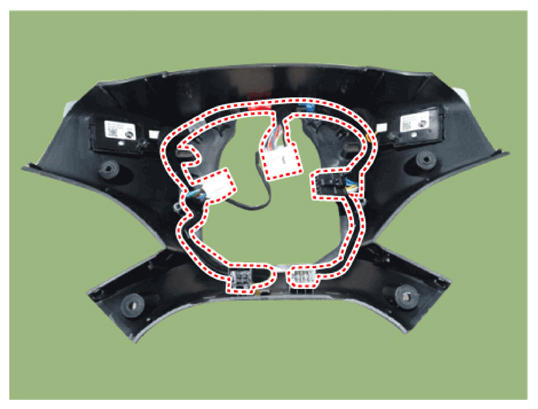

- Remove the lower cover from the steering wheel and then separate the wiring.
 Courtesy of HYUNDAI MOTOR AMERICA
|

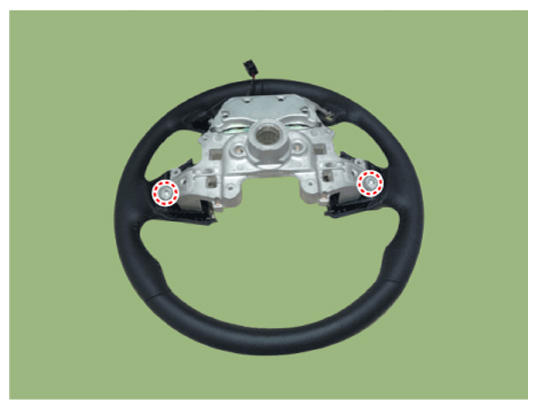

- Remove the screw and then remove the remote control switch.
 Courtesy of HYUNDAI MOTOR AMERICA
|
- Install in the reverse order of removal.
