Monitoring DTC Status

1. Connect GDS to "DATA LINK CONNECTOR (DLC)".
2. IG key "ON", Engine "OFF".

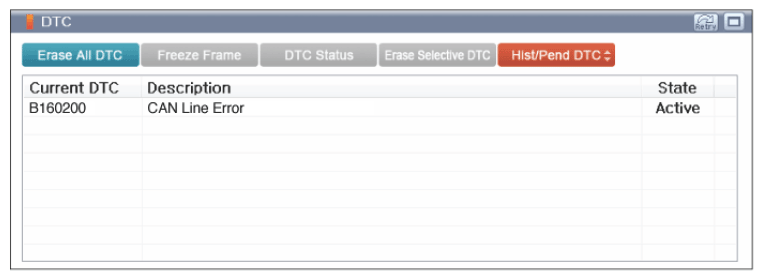

3. Select "Diagnostic Trouble Codes (DTC)" with GDS.
4. Monitor the diagnostic trouble code and present of the trouble code.
5. Erase the DTC and operate the vehicle within DTC Enable conditions in General information.

   Courtesy of HYUNDAI MOTOR AMERICA

6. Is the DTC output again?

YES

• Go to "WIRING INSPECTION " procedure.

NO

• Fault is intermittent caused by poor contact in PTM*'s connector or B-CAN communication unit/module connector, or PTM*'s memory was not cleared after repair.

→ Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration or damage.

→ Repair or replace as necessary, go to "VERIFICATION OF VEHICLE REPAIR " procedure.
