Engine Control System - 3.3L
>>
Electric WGT Control Actuator
>>
Schematic Diagrams
>>
Circuit Diagram
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

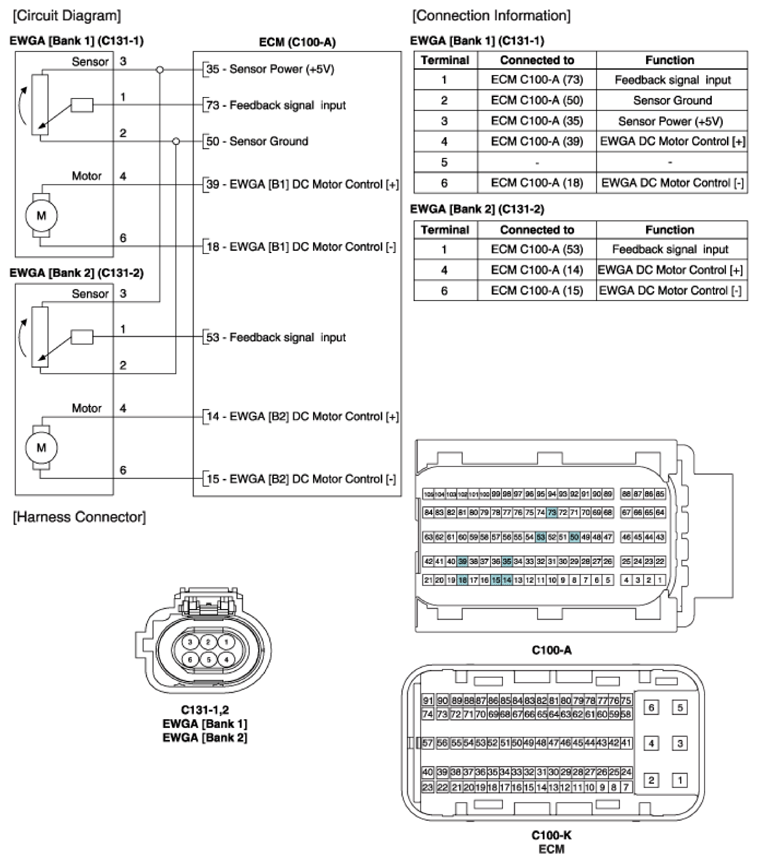

Circuit Diagram
Courtesy of HYUNDAI MOTOR AMERICA
