Engine Control System Diagnosis - 3.5L (5 Of 9)
>>
DTC P0499-00: EVAP System Vent Valve Control Circuit High
>>
Troubleshooting
>>

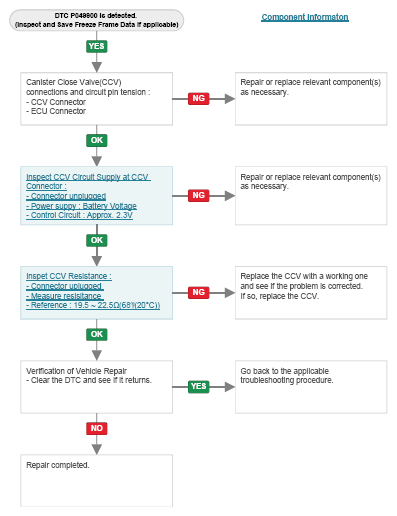

Diagnostic Flow-chart
September 30: LEMON manuals is back up on a temporary server! Slowness is possible
Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
Courtesy of HYUNDAI MOTOR AMERICA
