Monitor GDS Data
- Connect GDS to Data Link Connector (DLC).
- Ignition "On".

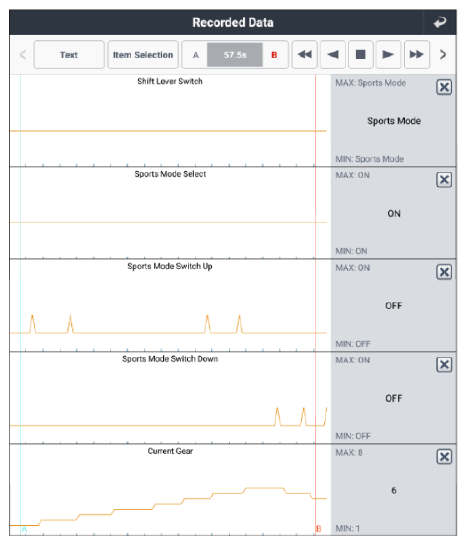

- Select and monitor from Current Data:
- Shift Lever Switch
- Sports Mode Select
- Sports Mode Switch "Up"
- Sports Mode Switch "Down"
- Current Gear
- Test Drive vehicle and monitor Middle Speed Sensor Data
Specification:
Increasing Gradually
 Courtesy of HYUNDAI MOTOR AMERICA
|
