Repair Procedures: Removal
- Disconnect the negative (-) battery terminal.WARNING:
- Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
- Disconnect the front impact sensor connector (B) and then remove the front impact sensor (A) alter loosening the mounting bolt.

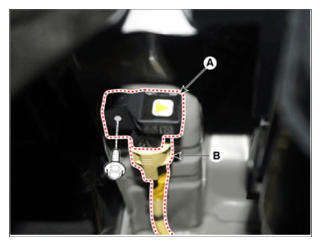

[Driver]

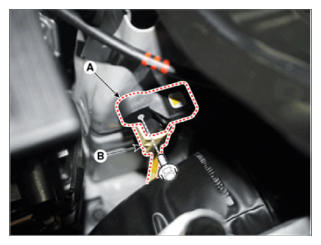

[Passenger]
