Repair Procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the main crash pad assembly.

    (Refer to Body (Interior and Exterior) - "MAIN CRASH PAD ASSEMBLY ")

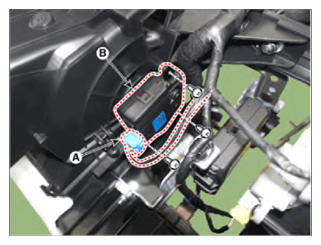

  3. Disconnect the connector (A), and then remove the intake actuator (B) after loosening the mounting screws.
    G15555203Courtesy of HYUNDAI MOTOR AMERICA
  4. Install in the reverse order of removal.
