Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the fuel pump.
(Refer to REPAIR PROCEDURES Fuel Delivery System - "Fuel Pump")

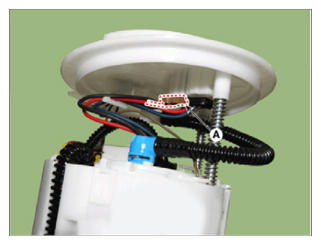

- Disconnect the fuel sender connector (A).

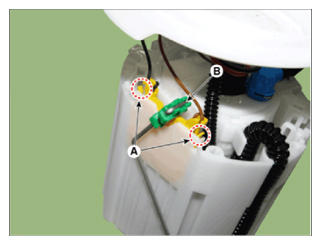

- Remove the fuel sender (B) after releasing the fixing hooks (A).
