Wireless Power Charger System
During ACC or IG ON, battery voltage is supplied to the wireless power charger system to transmit an output of 5 W to mobile phone.
Mobile phones certified with the wireless charging standard WPC (Qi 1.1.2) or equipped with an exclusive wireless charging case can be used.
IMPORTANT:
- WPC: Wireless Power Consortium
- Qi 1.1.2: refers to certified product with the capability to transmit power of up to 5 W and detect metal and other impurities to prevent heating.

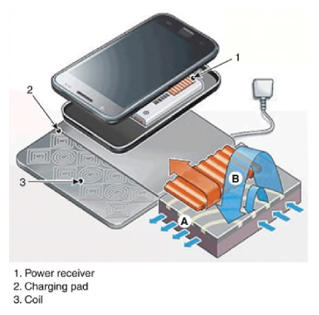

- Power receiver: embedded with the secondary coil designed to receive the induced current from the charging pad.
- Charging pad: electrical coils wound inside the plastic cover.
- Coil: Rectangular and circular coils generate diverse electromagnetic fields.
- Connect power to the charging pad to generate electromagnetic fields in the coil.
- Current induced from electromagnetic induction phenomenon is sent to the power receiver to charge the battery.
