Repair Procedures: Replacement

CAUTION:
  • Put on gloves to prevent hand injuries.
  • When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
NOTE:
  • Take care not to bend or scratch the trim and panels.
  1. Using a screwdriver or remover, remove the door step trim (A).

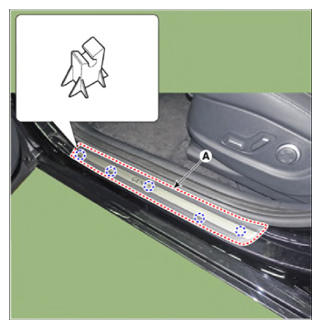

    [Front]

    G15549694Courtesy of HYUNDAI MOTOR AMERICA

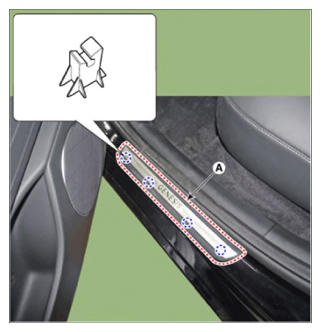

    [Rear]

    G15549695Courtesy of HYUNDAI MOTOR AMERICA
  2. To install, reverse the removal procedure.

    Information

    • Replace any damage clips.
