Power Trunk Module Diagnosis
>>
DTC B24D2-00: PTL Hall Sensor Error
>>
Troubleshooting
>>
Diagnostic Flow-chart
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!

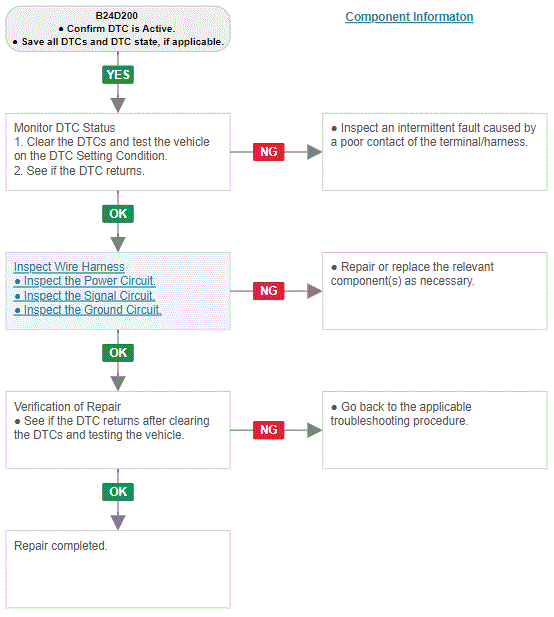

Diagnostic Flow-chart
Courtesy of HYUNDAI MOTOR AMERICA
